Brass Globe Valve

Brass Globe Valve is a globe valve primarily made from brass alloys, characterized by its spherical body. As a fundamental valve type in pipeline systems, it is designed to control fluid on/off or regulate flow. With its core strengths of reliability, durability, simple operation, and cost-effectiveness, it stands as the preferred solution for fluid on/off control and throttling in residential, commercial, and light industrial pipeline systems.

●Size: 1/2 to 4 inches
●Nominal pressure: 200WOG
● Material: Brass
● Field of Application: Water, Gas, Oil
● Normal Pressure: PN 25
● Work Temperature: 10℃ to 90℃
● Package: Standard export carton or according to your needs
● Connection End: Female Thread or flange connection
●OEM Service：Accepted
●Delivery Terms：FOB, CFR, CIF, EXW
●Payment Mode：T/T, L/C, PayPal, Western Union

Product category:

check valve

Enterprise Atlas:

Email:

linhaifeng117@gmail.com

Inquiry Now

Product Details

———

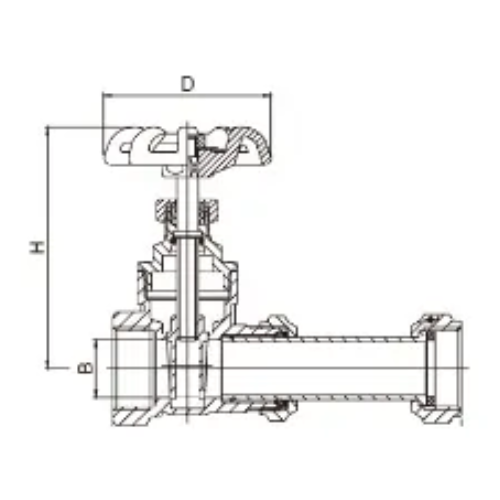

Product Formation

Brass globe valve mainly used to control the on-off or flow regulation of fluids in pipelines. The main body is made of brass (showing golden yellow), with a red handwheel on top. Rotating the handwheel drives the valve stem and internal disc to move, realizing the opening/closing or flow adjustment of the pipeline. The left side has an internal threaded interface, and the right side uses a union-style structure (with a hexagonal nut joint) for easy connection to pipelines. Brass material has good corrosion resistance, making it suitable for civil or small industrial pipeline systems (such as water heating, gas pipelines) to reliably cut off or regulate the flow of media (like water, gas).

Technical Standard:
1.Nominal pressure: 1.6MPa
2.Working medium: water
3.Working temp: -20℃ ≤T≤100℃

KEY WORDS：Brass Globe Valve，Globe Valve Brass，Brass Non-Rising Stem Globe Valve，HVAC Brass Globe Valve，Brass Valve， Ball Valve ，China, manufacturers, suppliers, wholesale, factory.

———

Product Features

Reliable sealing: The valve disc and valve seat fit closely, leading to minimal medium leakage. It is suitable for pipelines with high sealing requirements (e.g., water supply and gas systems).
Precise flow regulation: Rotating the handwheel allows the valve disc’s opening degree to be adjusted slowly, enabling fine control of medium flow and meeting the flow control needs of different working conditions.
Excellent material properties: The brass main body is corrosion-resistant (resistant to erosion by water, weak acids, and other media) and has good thermal conductivity. Additionally, the material is soft, making it easy to machine the sealing surface. It also boasts strong wear resistance and a long service life.
Convenient operation and installation: The valve stem is driven by a handwheel to lift and lower, making operation intuitive and effortless. The connection method is flexible (e.g., internal thread + union combination), facilitating easy installation, maintenance, and disassembly.
Strong application adaptability: It is suitable for medium and low-pressure, small-diameter civil or small industrial pipelines (e.g., household water supply, HVAC systems, and medium control in small equipment), and can stably control the on-off state and flow of clean media such as water and gas.

———

Product Parameter

Materials	Body/Bonnet	Brass Alloy
	Stem	Brass or Stainless Steel
	Disc	Brass or Stainless Steel
	Sealing Surface	Brass or Stainless Steel
Pressure Rating	Metric (PN)	1.0–4.0 MPa
	ASME Standard	Varies by wall thickness and design
	Applicable Temperature	Approximately –20°C to 150°C
Dimensions & Specifications	Nominal Diameter (DN/NPS)	1/2"–2"
Dimensions & Specifications	Connection Types	✅ Connection Types：Most common; compatible with pipe thread standards such as ISO 7-1 (BSP), NPT (American National Pipe Taper thread), GB/T 7306 (Chinese pipe thread). ✅ Flanged ConnectionUsed in a few models; compatible with PN10/PN16 flanges (e.g., ISO 7005-1).
Suitable Media	Recommended Media	Clean water, fresh water, lubricating oil, compressed air, non-corrosive gases (e.g., nitrogen).
Suitable Media	Restricted Media	Avoid media containing ammonia (NH₃) (brass is prone to stress corrosion cracking), strong acidic/alkaline fluids (e.g., hydrochloric acid, sodium hydroxide).

———
