Vertical Check Valve

The vertical check valve is an automatic valve specifically designed for vertical pipeline systems. It enables one-way fluid flow via the medium’s pressure and automatically closes during reverse flow to prevent medium backflow. Its core advantages include space efficiency, reliable non-return performance, and low maintenance requirements, making it widely used in the construction, industrial, and energy sectors.
Product Name :Brass Water Vertical Spring Check Valve
Port Size:1/2"to 4"
temperature of media:Medium Temperature
Customized support:OEM
Application:General
Media:Water
Structure:Check
Place of origin:China

Product category:

Check Valve

Email:

linhaifeng117@gmail.com

Inquiry Now

Product Details

———

Product Formation

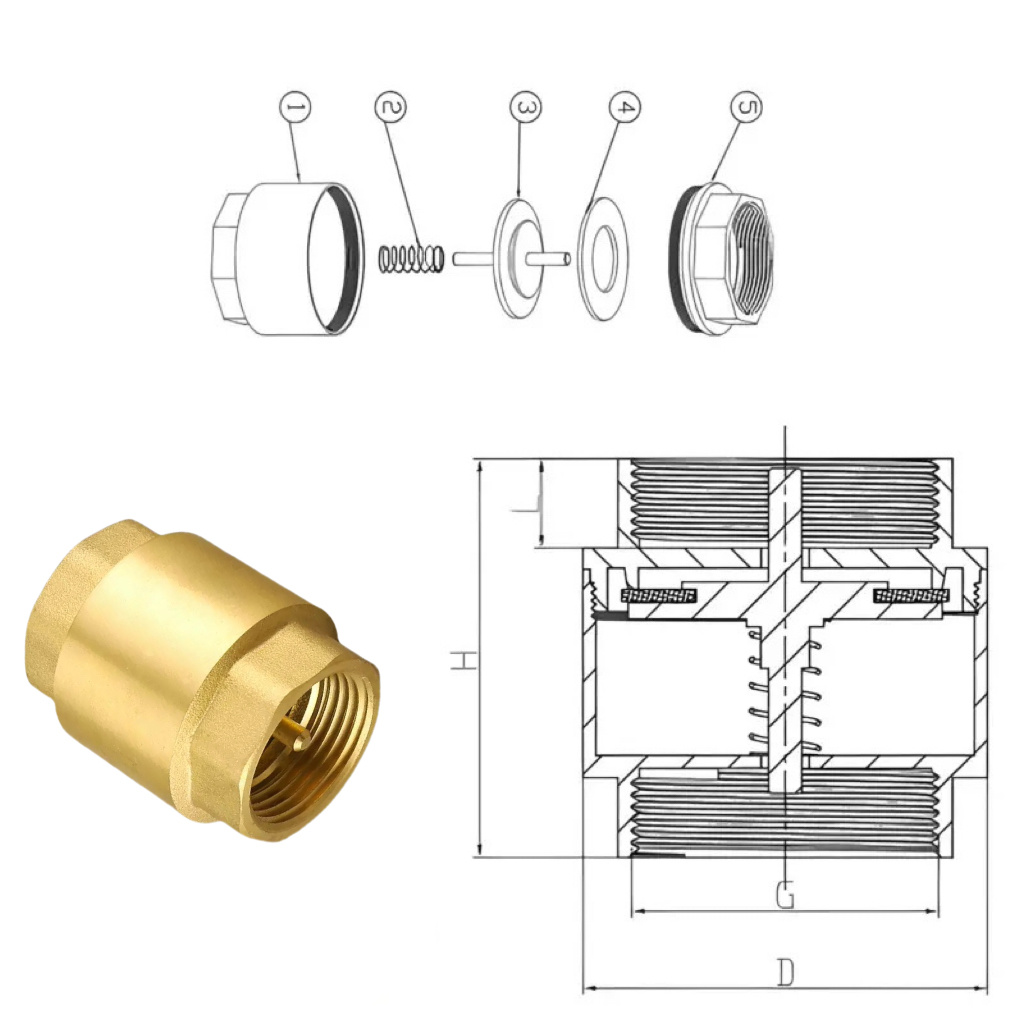

These brass liquid check valves are formed through precision manufacturing. They consist of a solid brass valve body, a precision-machined brass disc, and alloy spring-sealing components. High-quality brass and alloy materials are used, and advanced CNC machining and polishing processes ensure their reliability. Through rational structural design (e.g., a streamlined flow channel and self-sealing disc), they can efficiently block reverse flow while minimizing pressure loss during forward flow, ensuring stable unidirectional liquid movement in fire protection, plumbing, and industrial systems.

———

Product Features

Vertical installation: Compatible with vertical pipelines, requires no horizontal space, and is suitable for compact scenarios (e.g., pipe shafts, pump outlets).
One-way check: Lift- or swing-type valve discs automatically block medium backflow, with optional soft or metal seals for high reliability.
Low flow resistance: Straight-through flow channels reduce energy consumption; some models are silent and water-hammer resistant.
Wide adaptability: Suitable for various media (e.g., water, steam) for PN1.0–PN42.0 and -20℃–450℃ operating conditions. The valve body is corrosion-resistant and durable.
Easy maintenance: Simple structure with few failures; flange or threaded connections facilitate seal replacement.

———

Product Parameter

Application	General	Media	Water
Port Size	1/2"to 4"	Structure	Check
temperature of media	Medium Temperature	Place of origin	China
Customized support	OEM	Power	Hydraulic
Product Name	Brass Water Vertical Spring Check Valve	Brand Name	Green valves
Connection Type	Female BSPx Female BSP	Body material	brass
Working Pressure	25bar/362.5psi	Port Size	1/2"-4"
Type	Metal Check Valves	Product Weight	Depend on its size

———

FAQ
Q:1. What is the MOQ for brass liquid check valves?
A:The minimum order quantity is 200 pieces. It can be adjusted based on project scales (e.g., industrial fluid system installations, fire protection upgrades) and cooperation intentions.
Q:2. Do you provide customized services for brass liquid check valves (e.g., sealing materials, spring tension)?
A:Yes, we support customized production for specific needs:

• Sealing material upgrades (e.g., Viton seals for aggressive fluids);

• Spring tension adjustment for precise backflow blocking;

• Special thread types (e.g., NPT, BSP, or custom fittings).
Contact our sales team for detailed consultation.
Q:3: What are the delivery terms?
A:We usually adopt EXW, FOB terms. Flexible adjustments (e.g., CIF, DAP) can be made according to customer needs and shipping arrangements.

——

With more than 15 years of experience serving clients, we have developed extensive expertise and in-depth industry knowledge, enabling us to deliver reliable and effective solutions tailored to your requirements.
We provide professional technical support and customized service offerings. Our committed technical team is available to assist you with product consultation, installation guidance, and comprehensive after-sales support whenever necessary.
At Sheng Feng Fire, our professionals are dedicated to helping you select the most suitable products based on your specific needs.
Please do not hesitate to contact us for further information！
