Early suppression fast response sprinkler ESFR K16.8/K25.2

• Produce Name：ESFR Fire Sprinkler
• Material：Brass
• Size：1 Inch NPT
• Working Pressure：12 Bar
• Payment Mode：T/T,L/C

Product category:

SR/FR fire sprinkler

Email:

linhaifeng117@gmail.com

Inquiry Now

Product Details

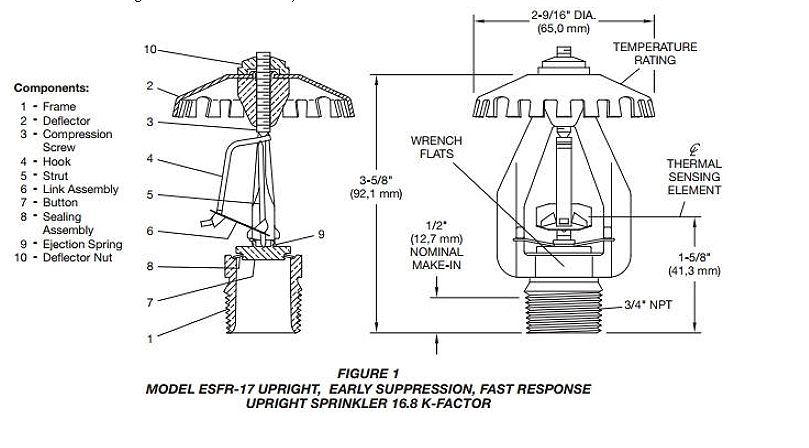

ESFR SPRINKLERS Description

Early Suppression Fast Response Sprinkler K16.8/K25.2 is a "fast response + early suppression" type sprinkler head specifically designed for high-hazard large spaces. It achieves efficient fire control in the early stages of a fire (within 3-5 minutes) through large flow rates, high water spray intensity, and an optimized water distribution pattern, preventing the fire from spreading to adjacent areas or igniting high-stack goods.

K16.8 and K25.2 are selected based on the hazard level of the scene and stack height. Both must comply with international certifications such as NFPA and FM, serving as a core component in modern warehousing and industrial fire protection systems for "preventing major fires and controlling spread."

For the critical fire risks of modern high-stack warehouses, our ESFR sprinkler delivers an industry-leading solution. It goes beyond traditional "fire control," producing high-momentum, large-flow water droplets that directly penetrate intense fire plumes to instantly cool and put out burning materials.

This strong suppression capability lets you protect the entire warehouse via ceiling nozzles alone (no need for complex, costly in-shelf systems) while meeting regulations. While delivering top-tier safety, it also cuts significantly on both initial investment and long-term maintenance costs.

If you need to tweak the length further (e.g., for product labels or quick specs) or adjust the tone (more technical for engineering docs, more sales-focused for brochures), just let me know—I can refine it to fit!

Features

* Powerful suppression capability: Specifically designed to suppress the most severe high-stack warehouse fires.
* Simplified warehouse fire protection: It can eliminate the sprinklers inside the shelves, reducing complexity and total costs.
* Rapid response mechanism: By integrating rapid response technology, actions can be taken at the early stage of a fire.

Products Technical Data

Model	Diameter Size	K Factor	Temperature	Response	Type
ESFR/74℃-P	1 Inch NPT	K16.8 K25.2	74℃	Fast	Pendent
ESFR/74℃-U	1 Inch NPT	K16.8 K25.2	74℃	Fast	Uright
ESFR/100℃-P	1 Inch NPT	K16.8 K25.2	100℃	Fast	Pendent
ESFR/74℃-U	1 Inch NPT	K16.8 K25.2	100℃	Fast	Uright

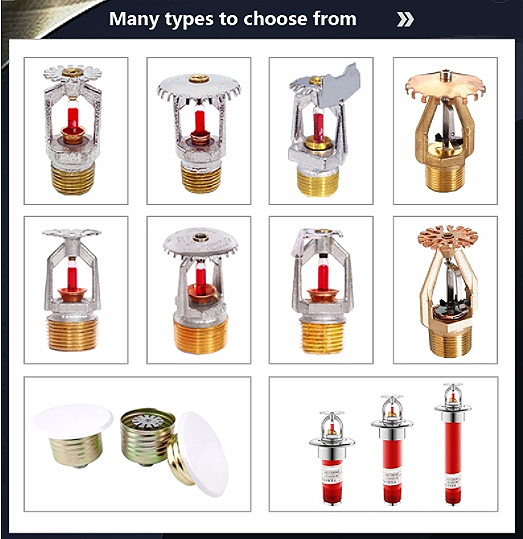

More fire sprinkler product selection

KEY WORDS： ESFR fire sprinkler，pendent sprinkler，fire sprinkler head，China, manufacturers, suppliers, wholesale, factory

Other Classified Products： Fire Hose Series，Fire Hydrant Valve，Fire Valve Series，Fire Hose Reel Cabinet，Fire Hose Nozzle System，Fire Coupling，Fire Water Monitor

FAQ

Q: Can you accept sample order?

A: Yes, we accept samples with little and reasonable charge.But need customer pay sample fees and transport fees firest.

Q: What is your payment terms?
A: Payment supports T/T, L/C, etc.

Q: How can l get my order?
A: We will send you the goods by UPS,DHL,Fedex,Oversea Shipment or other forwarder, all with tracking number.

Q: Why choose us?
A; With over 15 years of experience in the fire protection industry, our company has professional technical person! and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!

——

With more than 15 years of experience serving clients, we have developed extensive expertise and in-depth industry knowledge, enabling us to deliver reliable and effective solutions tailored to your requirements.
We provide professional technical support and customized service offerings. Our committed technical team is available to assist you with product consultation, installation guidance, and comprehensive after-sales support whenever necessary.
At Sheng Feng Fire, our professionals are dedicated to helping you select the most suitable products based on your specific needs.
Please do not hesitate to contact us for further information！
