Tyco K5.6 Quick Response Fire Sprinkler

Tyco K5.6 Quick Response Fire Sprinkler is a core early fire suppression component developed by Tyco specifically for light to medium hazard building scenarios. It achieves efficient inhibition during the smoldering stage of fires (the initial phase), with a response speed 3-5 times faster than standard response sprinklers. This not only ensures fire suppression efficiency but also significantly reduces water damage, perfectly aligning with the modern fire protection demand of "prioritizing safety while ensuring comfort." It continuously safeguards lives and property, defining the "era of rapid response" in light hazard fire protection.

•Product Name：Response Fire Sprinkler
•Material :Brass
•Size :Decorative cover diameter: 4-6 inches (102-152 mm); body length: 1.5-3 inches (38-76 mm); ceiling cutout diameter: 2.5-3.5 inches (64-89 mm).
•Nominal Pressure :0.05-1.2MPa（0.5-12bar）
•Operating Temp:68°C（orange glass bulb）and 79°C（red glass bulb）
•OEM Service：Accepted
•Delivery Terms：FOB, CFR, CIF, EXW
•Payment Mode：T/T, L/C, PayPal, Western Union

Product category:

UL/FM Fire Fighting Equipment

Enterprise Atlas:

Email:

linhaifeng117@gmail.com

Inquiry Now

Product Details

————

Tyco K5.6 Quick Response Fire Sprinkler

The working principle of K5.6 rapid response fire sprinkler is based on the rapid response characteristics of thermal sensitive materials. When the ambient temperature reaches the set value, the heat-sensitive liquid inside the nozzle will expand rapidly, resulting in the opening of the nozzle. Compared with traditional fire sprinklers, this method has a faster response speed and can be started in the early stage of the fire, reducing the risk of fire spread and protecting life and property.

KEY WORDS： Quick fire sprinkler，K5.6 fire sprinkler，fire sprinkler ul， pendent sprinkler head，uright sprinkler，1/2inch fire sprinkler，China, manufacturers, suppliers, wholesale, factory

Other Classifed Products：

Fire Hose Categories, Fire Sprinkler System, Fire Protection Valve , Fire Hose Reel&Cabinet , Fire Foam Equipment，Fire Nozzle and Fire Monitor , Fire Hydrant , UL/FM Fire Fighting Equipment , Brass Valve Categories , Fire Extinguisher Series

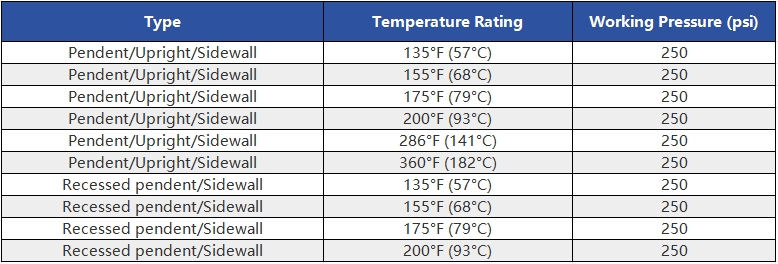

Available Size

Type	Temperature Rating	Working Pressure (psi)
Pendant/Upright/Sidewall	135°F (57°C)	250
Pendant/Upright/Sidewall	155°F (68°C)	250
Pendant/Upright/Sidewall	175°F (79°C)	250
Pendant/Upright/Sidewall	200°F (93°C)	250
Pendant/Upright/Sidewall	286°F (141°C)	250
Pendant/Upright/Sidewall	360°F (182°C)	250
Recessed pendant/Sidewall	135°F (57°C)	250
Recessed pendant/Sidewall	155°F (68°C)	250
Recessed pendant/Sidewall	175°F (79°C)	250
Recessed pendant/Sidewall	200°F (93°C)	250

Features

The Tyco K5.6 Quick Response Fire Sprinkler is an automatic fire sprinkler system component by Tyco (Tyco Fire Protection) designed for conventional to moderate-risk spaces requiring faster fire response. It combines concealed aesthetics with rapid detection capabilities. Below are its core features:
1.Quick Response characteristic: Enables earlier fire detection and faster activation.

2.Concealed structural design: Balances aesthetics and functionality.

3.K5.6 flow coefficient: Meets the requirements of conventional water spray intensity.

4.Materials and craftsmanship: Optimizes durability and reliability.

5.Installation and maintenance: Convenient and efficient.

Product Parameter

Response Time	Quick Response
Material :	Brass
Size :	Decorative cover diameter: 4-6 inches (102-152 mm); body length: 1.5-3 inches (38-76 mm); ceiling cutout diameter: 2.5-3.5 inches (64-89 mm).
Nominal Pressure :	0.05-1.2MPa（0.5-12bar）
Channel Design :	Full Port Straight Through Type
Working Media :	water
Operating Temp :	68°C（orange glass bulb）and 79°C（red glass bulb）
Temperature Rating：	Standard configuration: 155°F (68°C) (orange glass bulb); Optional model: 135°F (57°C) (yellow glass bulb); High - temperature type: 175°F (79°C) (red glass bulb).
Connection Interface：	1/2" NPT
Minimum Start - up Pressure：	0.1 MPa（14.5 psi）
Operating Pressure Range：	0.1-1.0 MPa（14.5-145 psi）
Burst Pressure：	≥ 3 times the working pressure

FAQ

Q: Can you accept sample order?

A: Yes, we accept samples with little and reasonablecharge.But need customer pay sample fees and transportfees firest.

Q: What is your payment terms?
A: Payment supports T/T, L/C, etc.

Q: How can l get my order?
A: We will send you the goods by UPS,DHL,Fedex,OverseaShipment or other forwarder, all with tracking number.

Q: Why choose us?
A; With over 15 years of experience in the fire protectionindustry, our company has professional technical personne!and many well-known partners in the domestic market. Weoffer favorable prices and guarantee quality, having passedmultiple certifications!

——

We serve customers for over 15 years — so we’ve got the knowledge and industry experience to help you get it right.Professional technical support, intimate service experience We have a professional technical support team, at any time to provide you with product consultation, installation guidance and after-sales service.

Let the professionals at Sheng Feng Fire help you select the products that meet your exact needs.

Welcome to inqury us！
