Tyco High Speed Water Mist Nozzle

Tyco High-Speed Water Mist Nozzle is a precision atomization component specially developed for High-Pressure Water Mist (HWM) fire protection systems. Its core mission is to achieve the fire protection goals of "high-efficiency suppression, low water consumption, and environmental friendliness" through the microscopic atomization of ultra-high-pressure water streams. As a paragon of "technology empowering safety" in the modern fire protection field, it continues to drive the industry toward development in "precision, greenness, and intelligence."

•Product Name：Water Mist Nozzle
•Material :Brass/stainless steel
•Size :1/2"-3/4" NPT
•Nominal Pressure :0.5-2.0MPa
•Operating Temp:-20°C to +80°C
•OEM Service：Accepted
•Delivery Terms：FOB, CFR, CIF, EXW
•Payment Mode：T/T, L/C, PayPal, Western Union

Product category:

UL/FM Fire Fighting Equipment

Enterprise Atlas:

Email:

linhaifeng117@gmail.com

Inquiry Now

Product Details

————

High Speed Water Mist Nozzle

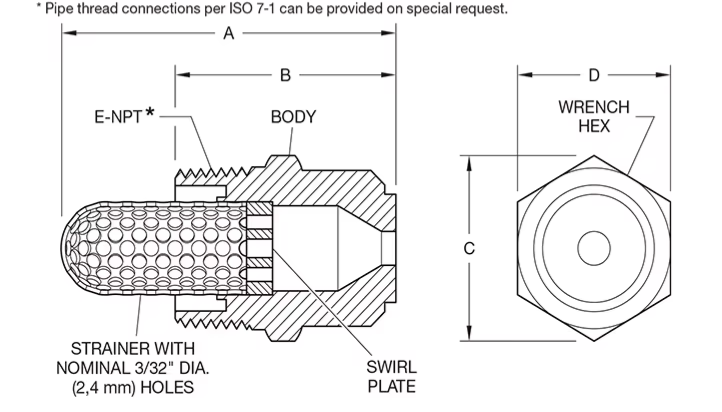

High Velocity Water Spray Nozzles are internal swirl plate type open nozzles designed for use in fixed water spray or deluge system for the fire protection application.
These nozzles produce solid uniform and dense core of high velocity water spray to effect fire control. Nozzles are normally used to cool the surface as well as for extinguishment. Nozzles are typically used for Deluge protection of special hazards such as oil filled transformers, switch-gear, chemical process equipment, conveyor system and flammable liquid storage areas. The minimum desirable pressure to achieve a reasonable spray pattern is 3.5 Kg./sq.cm. (50 psi).

KEY WORDS： water mist nozzle，water spray nozzle，China, manufacturers, suppliers, wholesale, factory

Other Classifed Products：

Fire Hose Categories, Fire Sprinkler System, Fire Protection Valve , Fire Hose Reel&Cabinet , Fire Foam Equipment，Fire Nozzle and Fire Monitor , Fire Hydrant , UL/FM Fire Fighting Equipment , Brass Valve Categories , Fire Extinguisher Series

————

KEY POINTS

* Function: HVWS nozzles are used to disperse water in a high-velocity spray pattern to cool and extinguish fires in high-risk areas. They are commonly used in applications such as flammable liquid storage areas, transformer vaults, aircraft hangars, and some industrial processes.

* Characteristics: High Velocity Water Spray nozzles typically feature a unique design with a specialized orifice, internal baffles, and flow straightening vanes. These components work together to create a pressurized water jet with a narrow spray pattern and high momentum, which helps in penetrating flames and delivering efficient fire suppression.

* Fire Protection: HVWS systems are designed to provide rapid cooling and control of fires. The high-velocity water spray can quickly absorb heat from flames, lower the temperature of the surrounding area, and create a barrier of cooling water.

* Nozzle Placement: The placement of HVWS nozzles is critical to their effectiveness. They are strategically installed to provide coverage over the protected area, typically in overhead positions. The spacing and arrangement of nozzles should be based on the specific fire hazards and requirements of the installation.

* Activation: HVWS systems can be activated in several ways, depending on the fire detection system used. They may be connected to a fire alarm panel, heat or smoke detectors, or manual release stations. When a fire is detected, the system activates, and water is discharged through the HVWS nozzles.

* Design Considerations: The design of a HVWS system should consider factors such as the type and size of the protected area, fire hazards, flow rates, water supply requirements, and local fire protection codes and regulations.

————

Product Parameter

Pressure Range：	70-140 bar（1000-2000 psi）
Droplet Size：	≤100μm
Horizontal Range：	Under rated pressure, typical range is 1.5 - 4.5 m (5 - 15 ft)
Vertical Range：	When spraying upwards/downwards, effective coverage height is 1 - 6 m (3 - 20 ft)
Protection Area：	Protection area per nozzle is 0.5 - 3 m² (5 - 32 sq ft)
Connection Interface：	NPT
Connection Method：	Threaded direct connection or with ferrule fitting
Size :	1/2"-3/4" NPT
Nominal Pressure :	0.5-2.0MPa
Channel Design :	Full Port Straight Through Type
Working Media :	water
Operating Temp :	-20°C to +80°C

————

FAQ

Q: Can you accept sample order?

A: Yes, we accept samples with little and reasonablecharge.But need customer pay sample fees and transportfees firest.

Q: What is your payment terms?
A: Payment supports T/T, L/C, etc.

Q: How can l get my order?
A: We will send you the goods by UPS,DHL,Fedex,OverseaShipment or other forwarder, all with tracking number.

Q: Why choose us?
A; With over 15 years of experience in the fire protectionindustry, our company has professional technical personne!and many well-known partners in the domestic market. Weoffer favorable prices and guarantee quality, having passedmultiple certifications!

——

We serve customers for over 15 years — so we’ve got the knowledge and industry experience to help you get it right.Professional technical support, intimate service experience We have a professional technical support team, at any time to provide you with product consultation, installation guidance and after-sales service.

Let the professionals at Sheng Feng Fire help you select the products that meet your exact needs.

Welcome to inqury us！
