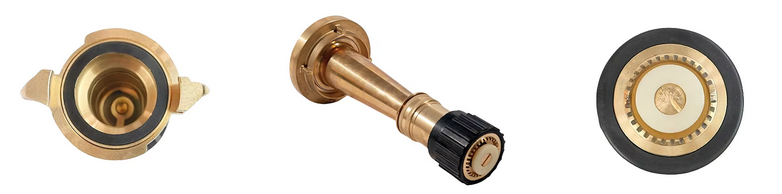

Nakajima Jet Spray Fire Hose Nozzle
• Material：Brass/Copper Alloy
• Size：1.5"/2"/2.5"
• Inlet：40mm/50mm/65mm
• Working Pressure：6bar~16bar
• Flow Rate：Adjustable
• Finishing：Natural Brass
• Discharge pattern：Stream/Spray
• OEM Service：Accepted
• Delivery Terms：FOB, CFR, CIF, EXW
• Payment Mode：T/T, L/C, PayPal, Western Union
Product category:
Enterprise Atlas:
Product Details
———
Product Formation
Fire hose nozzles play an important part in firefighting.It's designed to be easy to use and keep the water from running out of the pipe. These types of nozzles are very versatile and can accommodate different sizes of fire hose and fire streams. They can be used for protection and for fire attack. When given the appropriate nozzle pressure and water supply, they are effective for any fire ground situation. It can deliver water, foam, powder or other fire extinguishering substance.
Branch pipe is a specific type of nozzle used by firefighters to douse the fire. Firefighters attach the branch pipe to the end of a fire hose pipe which can be adjusted by hand to shape, regulate and direct the water flow or fire safety agents. Branch Pipe Fire Nozzle has the option of a fog pattern or a straight stream. It can improve surface cooling compared to the full jet. It is usually made of brass or aluminum.
Other Classifed Products：
Fire Hose Categories, Fire Sprinkler System, Fire Protection Valve , Fire Hose Reel&Cabinet , Fire Foam Equipment，Fire Nozzle and Fire Monitor , Fire Hydrant , UL/FM Fire Fighting Equipment , Brass Valve Categories , Fire Extinguisher Series
———
Specification
| Model | QD40 | QD50 | QD65 |
| Nominal Dia. | 40mm | 50mm | 65mm |
| Rated Working Pressure | 0.6Mpa~1.6Mpa | 0.6Mpa~1.6Mpa | 0.6Mpa~1.6Mpa |
| Flow Rate | 2.5 L/S | 5.0L/S | 6.0L/S |
| Range | ≥21M | ≥ 27M | ≥ 30M |
| Nozzle Angle | 0~100° | 0~100° | 0~100° |
| Material | Main body: Brass or Stainless steel |
| Connection method | Threaded Connection |
| Working pressure range | 0.6~1.6MPa (6~16bar) |
| Max. pressure resistance: 2.5MPa (25bar, test pressure) | |
| Suitable for the output pressure of mainstream fire pumps; in high - pressure mode, it can enhance the range and penetration force | |
| Flow range | 50~400L/min (13~105GPM) |
| Single nozzle covers medium to large - area fires, and the flow increases linearly with the increase of pressure | |
| Spray mode | Dual - mode switching: |
| 1. Jet: Concentrated high - pressure water flow with long range; | |
| 2. Spray: Dispersed mist water flow, wide coverage, good cooling and dust suppression effects | |
| Combined mode meets different fire situations (e.g., jet extinguishes deep - seated fires, spray cools the surrounding environment) | |
| Range (under typical pressure) | Jet (1.0MPa): 25~35m |
| Spray (0.8MPa): 15~20m | |
| Flow regulation method | Manual knob/push - rod adjustment (stepless adjustment or fixed gears), simple operation, no tools required, quick switching of flow/rate mode in fire scenes |
| Anti - backflow design | Built - in check valve |
| Operating temperature range | Conventional rubber seals: -20℃~+80℃ |
| High - temperature model: -20℃~+150℃ (fluororubber seals) |
———
Product Features
1. Dual Spray Modes: Easily switch between jet (concentrated stream for solid fires) and spray (fine mist for liquid fires) via rotating nozzle head.
2. Wide Pressure & Hose Compatibility: Works at 0.6-1.0MPa (6-10 bar), withstands 1.2-2.0MPa (12-20 bar) test pressure; fits 40mm/1.5", 50mm/2", 65mm/2.5" standard hoses.
3. Ergonomic Pistol Grip: One-hand operation, non-slip design (even with wet gloves) reduces fatigue and enables precise direction adjustment.
4. Durable Materials: High-grade brass (heat/impact-resistant) or aluminum alloy (lightweight); both rust/corrosion-proof for long service life.
5. Easy Operation & Low Maintenance: No complex setup—connect to hose and adjust mode quickly; sealed structure prevents leakage and debris buildup.
6. Certified Safety: Meets EN 15182, NFPA 1963 standards; strictly tested for safety, suitable for commercial, industrial, and outdoor use.
———
Product Parameter
| Material： | Brass/Copper Alloy |
| Inlet: | 40mm/50mm/65mm |
| Working Pressure： | 6 bar~16 bar |
| Flow Rate： | Adjustable |
| Finishing： | Natural Brass/Aluminum/Chrome/Red |
———
FAQ
Q. What is the MOQ for Nakajima Jet Spray Fire Hose Nozzle?
A:The minimum order quantity is 100 units for standard sizes. Production lead time is 15 - 20 working days for standard products. Customized requirements (e.g., special sizes, materials) may adjust MOQ and delivery timelines.
Q. Can you accept sample order?
A:Yes, we accept samples with little and reasonablecharge.But need customer pay sample fees and transportfees firest.
Q. What are the available delivery terms?
A:We offer EXW, FOB, CIF, and DAP delivery terms. Our logistics team will help you choose the most suitable shipping solution based on your location and requirements.
——
With more than 15 years of experience serving clients, we have developed extensive expertise and in-depth industry knowledge, enabling us to deliver reliable and effective solutions tailored to your requirements.
We provide professional technical support and customized service offerings. Our committed technical team is available to assist you with product consultation, installation guidance, and comprehensive after-sales support whenever necessary.
At Sheng Feng Fire, our professionals are dedicated to helping you select the most suitable products based on your specific needs.
Please do not hesitate to contact us for further information！
