Medium Velocity Directional Sprinkler

The medium-speed water mist fire sprinkler is a key component in the water spray fire extinguishing system. It decomposes water flow into fine water mist through impact and other means, thereby efficiently completing tasks such as fire extinguishing, fire control, and protective cooling.

•Product Name：Medium Water Mist Fire Sprinkler
•Material :brass/ stainless steel
•Size :1/2" NPT
•Nominal Pressure :10 psi ~ 35 psi（0.69 bar ~ 2.41 bar）
•Operating Temp:68°C ~ 141°C
•Installation Type：Pendent, Uright
•OEM Service：Accepted
•Delivery Terms：FOB, CFR, CIF, EXW
•Payment Mode：T/T, L/C, PayPal, Western Union
•MOQ：300 Pieces

Product category:

Water mist fire sprinkler

Enterprise Atlas:

Email:

linhaifeng117@gmail.com

Inquiry Now

Product Details

Medium Sprinkler Nozzle Product Description

Efficient heat absorption and cooling are the most crucial functions. Water mist has a huge total surface area. When these tiny water droplets are sprayed onto the fire scene, they will instantly absorb a large amount of heat and quickly evaporate into water vapor. This "phase change" process from liquid water to gaseous water vapor absorbs an astonishing amount of heat (latent heat of vaporization), thereby rapidly and effectively reducing the temperature of the flame and the surface of the burning object. When the temperature is cooled below the ignition point, the combustion will cease.

Suffocation and hypoxia: The volume of water vapor produced by the evaporation of water mist will expand rapidly (up to 1700 times), and this water vapor will quickly dilute the oxygen concentration in the air around the fire source, creating a local hypoxic environment. When the oxygen concentration is insufficient, combustion cannot continue and is thus "suffocated".

Blocking radiant heat: The water mist curtain formed by the nozzle can effectively block and attenuate the heat radiation of the flame to the surrounding combustibility. This not only can prevent the fire from spreading further, but also can open up a relatively safe passage for firefighters to enter the fire scene for rescue.

Product Features

• High fire extinguishing efficiency: The three mechanisms work in synergy, and the effect far exceeds that of a single mechanism.

• Low water consumption: Due to the efficient utilization of water, the required water volume is greatly reduced, thereby lowering the damage caused by water stains.

• Electrical insulation: Fine water mist has excellent electrical insulation performance (requires professional design) and can be used to protect electrical equipment, such as transformers.

• Flexible application: Widely used in various special hazardous places such as gas tanks, hydraulic equipment, turbines, and ship cabins.

Product Parameter

Material :	Brass/ Stainless steel
Size :	1/2" NPT
Nominal Pressure :	10 psi ~ 35 psi（0.69 bar ~ 2.41 bar）
Installation Type :	Pendent
Working Media :	water
Operating Temp :	165°F ~ 360°F（74°C ~ 182°C）

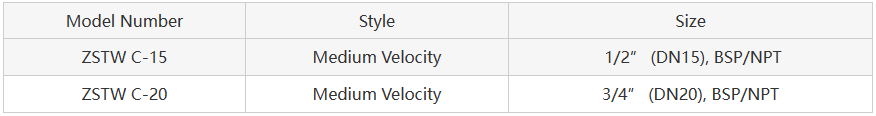

Model Number	Style	Size
ZSTW C-15	Medium Velocity	1/2"（DN15），BSP/NPT
ZSTW C-20	Medium Velocity	3/4"（DN20），BSP/NPT

KEY WORDS：Water Mist Sprinkler Nozzle，Impact Medium Velocity Nozzle，Centrifugal Water Mist Sprinkler Nozzle，Brass Medium Velocity Nozzle，Water Fog Nozzle for Fire Fighting，Medium Velocity Nozzle Supplier，Manufacturer，Supplier，Wholesale，Factory

FAQ

Q: Can you accept sample order?

A: Yes, we accept samples with little and reasonable charge.But need customer pay sample fees and transport fees firest.

Q: What is your payment terms?
A: Payment supports T/T, L/C, etc.

Q: How can l get my order?
A: We will send you the goods by UPS,DHL,Fedex,Oversea Shipment or other forwarder, all with tracking number.

Q: Why choose us?
A; With over 15 years of experience in the fire protection industry, our company has professional technical person! and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!

——

With more than 15 years of experience serving clients, we have developed extensive expertise and in-depth industry knowledge, enabling us to deliver reliable and effective solutions tailored to your requirements.
We provide professional technical support and customized service offerings. Our committed technical team is available to assist you with product consultation, installation guidance, and comprehensive after-sales support whenever necessary.
At Sheng Feng Fire, our professionals are dedicated to helping you select the most suitable products based on your specific needs.
Please do not hesitate to contact us for further information！
