K8.0 Standard Response Concealed Fire Sprinkler
•Material :Brass/stainless steel/aluminum alloy
•Size :For the low-pressure type, the body length ranges from 0.5–1.2 inches (12.7–30.48 mm), with the decorative cover diameter measuring 1.5–2.5 inches (38.1–63.5 mm). For the medium-pressure type, the body is slightly longer (1.0–1.5 inches / 25.4–38.1 mm), and the decorative cover is slightly larger (2.0–3.0 inches / 50.8–76.2 mm).
•Nominal Pressure :5–20 bar（72.5–290 psi）
•Operating Temp:Normal environment,-20°Cto +60°C
•OEM Service：Accepted
•Delivery Terms：FOB, CFR, CIF, EXW
•Payment Mode：T/T, L/C, PayPal, Western Union
Product category:
Product Details
————
Standard Response Concealed Fire Sprinkler
K8.0 standard response concealed pendent sprinkler (Fusible link) incorporates a cover plate to conceal operational parts for aesthetic consideration. When exposed to specific temperature of fire, cover plate falls away and deflector is released to work similar as recessed sprinkler.The working principle of the standard reactive concealed fire sprinkler is mainly based on the thermal expansion principle of the glass bubble or bimetal sheet. When the ambient temperature exceeds the set value, the glass bubble breaks or the bimetal sheet bends, allowing water to spray out of the nozzle and cover the fire source.
KEY WORDS： concealed fire sprinkler，pendent sprinkler，standard fire sprinkler，fire sprinkler ul，3/4inch fire sprinkler，China, manufacturers, suppliers, wholesale, factory
Other Classified Products： Fire Hose Series，Fire Hydrant Valve，Fire Valve Series，Fire Hose Reel Cabinet，Fire Hose Nozzle System，Fire Coupling，Fire Water Monitor

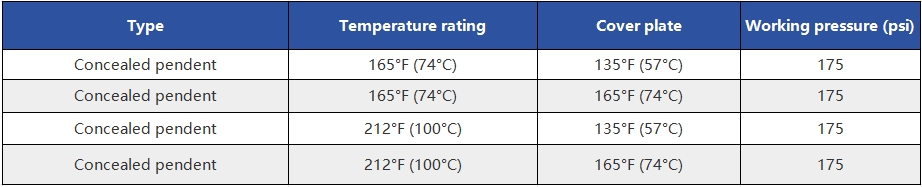

Available Size
Note：The cover assembly provides adjustment up to 3/4″
Feature
The K8.0 Standard Response Concealed Fire Sprinkler is a cost-effective concealed fire protection device tailored for personnel-intensive public buildings. Its core features focus on balancing response speed, spray efficiency, and aesthetic concealment, delivering reliable protection in conventional risk scenarios. Below are its key characteristics:
1.Standard Response Performance: Features a moderate RTI (Response Time Index) value, balancing sensitivity and stability.
2.Spray Performance: Ensures uniform coverage to balance fire suppression and water stain reduction.
3.Concealed Design: Achieves "near-zero gap" embedding for ultimate aesthetic appeal.
4.Materials & Durability: Combines corrosion resistance with long-term operational stability.
5.Installation & Maintenance: Convenient and reliable, compatible with mainstream fire protection systems.
Product Parameter
| Material : | Brass/stainless steel/aluminum alloy |
| Size : | For the low-pressure type, the body length ranges from 0.5–1.2 inches (12.7–30.48 mm), with the decorative cover diameter measuring 1.5–2.5 inches (38.1–63.5 mm). For the medium-pressure type, the body is slightly longer (1.0–1.5 inches / 25.4–38.1 mm), and the decorative cover is slightly larger (2.0–3.0 inches / 50.8–76.2 mm). |
| Nominal Pressure : | 5–20 bar（72.5–290 psi） |
| Channel Design : | Full Port Straight Through Type |
| Working Media : | water |
| Operating Temp : | Normal environment：-20°Cto +60°C |
————
FAQ
Q: Can you accept sample order?
A: Yes, we accept samples with little and reasonablecharge.But need customer pay sample fees and transportfees firest.
Q: What is your payment terms?
A: Payment supports T/T, L/C, etc.
Q: How can l get my order?
A: We will send you the goods by UPS,DHL,Fedex,OverseaShipment or other forwarder, all with tracking number.
Q: Why choose us?
A; With over 10 years of experience in the fire protectionindustry, our company has professional technical personne!and many well-known partners in the domestic market. Weoffer favorable prices and guarantee quality, having passedmultiple certifications!
——
We serve customers for over 10 years — so we’ve got the knowledge and industry experience to help you get it right.Professional technical support, intimate service experience We have a professional technical support team, at any time to provide you with product consultation, installation guidance and after-sales service.
Let the professionals at Sheng Feng Fire help you select the products that meet your exact needs.
Welcome to inqury us！
