Manual Fire Water Monitor
It delivers high-pressure, long-range water flows to tackle major fires (e.g., in warehouses, docks) and pairs with stable water supplies for reliable emergency use.
● Main Material:
- Standard Type: Environmentally friendly brass (C36000, RoHS compliant)
- Corrosion-resistant Type: Stainless steel/Nickel - plated brass (surface nickel plating thickness ≥10μm)
● Connection Method:
- Threaded Connection (standard BSP/NPT threads, e.g., 1/2"BSP, 3/4"NPT)
- Compatible with quick - release connectors for fire hoses (some models)
● Angle Adjustment:
- Horizontal Rotation: ±90° (manually swing the nozzle body, with limit pins)
- Vertical Elevation: -20°~+50° (suitable for high shelves/low ground fires)
● Operating Temperature Range:
- Standard Type: -20℃~+80℃ (NBR seal)
- High - temp Type: -40℃~+150℃ (FKM seal)
● OEM Service：Accepted
● Delivery Terms：FOB, CFR, CIF, EXW
● Payment Mode：T/T, L/C, PayPal, Western Union
Product category:
Enterprise Atlas:
Product Details
———
Product Formation

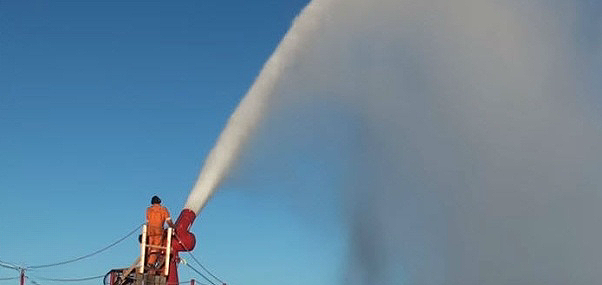

* A fixed manual fire water cannon, also known as a fire monitor or fire water monitor, is a device designed to deliver large volumes of water or fire-suppressing agents to extinguish fires. It is typically installed in industrial settings, such as chemical plants, mining operations, or large storage facilities, where high-flow water streams are required to combat fires.
*The water cannon consists of a nozzle attached to a swivel joint that allows for a wide range of movement. It is usually mounted on a fixed structure, such as a wall, platform, or roof, and can be controlled manually to aim the water stream at the fire. The nozzle is designed to produce a powerful jet of water or an adjustable spray pattern, depending on the specific requirements.
* This fire water cannon is the latest self-designed technology at home and abroad. The key parts have been improved. It is simple, novel, stable and reliable, flexible in operation and convenient in maintenance. When spraying water column, it can extinguish solid fire; when spraying water mist, it can be used for cooling of fire field, fire rescue, and can also be used for cooling of storage tanks such as oil storage tank area, benzene tank area and methanol tank area. It can effectively absorb the heat in the air at the fire site and absorb the toxic and harmful gases such as smoke and chlorine in the diluted air, which improves the safety factor of firefighters. Applicable to areas of offshore oil rigs, ports, dock oil depots, marine firefighting vessels and other fire extinguishing media.
KEY WORDS： Manual adjustment、Handwheel operation， High-pressure water jet、Straight stream jet, Manual valve、Steel monitor body, China, manufacturers, suppliers, wholesale, factory.
Other Classifed Products：
Fire Hose Categories, Fire Sprinkler System, Fire Protection Valve , Fire Hose Reel&Cabinet , Fire Foam Equipment，Fire Nozzle and Fire Monitor , Fire Hydrant , UL/FM Fire Fighting Equipment , Brass Valve Categories , Fire Extinguisher Series
———
Product Features
Manual Fire Water Monitor, as a no power-driven manual jetting equipment, the Manual Fire Water Monitor features as follows:
- Lightweight design: Easy to hold and operate manually or install via brackets/turrets, suitable for operation in narrow spaces (e.g., between warehouse shelves, workshop aisles).
- No reliance on electronic components: Flow rate is adjustable via a handwheel knob (5 selectable levels), and modes (jet/spray) are switched using a rotating adjustment ring (with locking design to prevent misoperation)—no power required, making it ideal for power-off/no-power scenarios (e.g., old factories, temporary fire points).
- Standard threaded connections: Uses BSP/NPT threads (e.g., 1/2"BSP, 3/4"NPT) to connect to fire hoses; some models are compatible with quick-release connectors for rapid installation/replacement, reducing deployment time.
- Dual-mode jetting: Adjustable via handwheel to suit different fire scenes, enabling precise coverage of the fire area.
- Cost-effective maintenance: Seals, filters, and other components use standard parts—low wear and tear, easy to operate, and significantly reducing long-term usage costs.
———
Product Parameter
| Model： | PS30 | PS40 | PS50 |
| Flow (L/s)： | 30 | 40 | 50 |
| Rated working pressure (MPa)： | 0.8 | 0.9 | 0.95 |
| Working pressure range (MPa)： | 0.6 - 1.2 | 0.6 - 1.2 | 0.6 - 1.2 |
| Jet radius (m)： | ≥55 | ≥60 | ≥65 |
| Horizontal rotation angle (°)： | 360 | ||
| Vertical rotation angle (°)： | -40～+80 | ||
| Spray angle (°)： | 100 | ||
| Installation method： | Seat | ||
| Connecting flange： | DN100 | ||
| Operation method： | Handle | ||
| Operating radius (mm)： | 500 | ||
| Use environment： | -10℃ - +50℃ ≤95%RH | ||
| Parameter Category | Typical Value/Range | Description |
| Main Material | - Standard Type: Environmentally friendly brass (C36000, RoHS compliant) | Brass types are cost - effective and suitable for routine indoor fire protection; stainless steel/nickel - plated brass types resist salt spray and chemical corrosion, suitable for chemical and shipbuilding scenarios. |
| - Corrosion-resistant Type: Stainless steel/Nickel - plated brass (surface nickel plating thickness ≥10μm) | ||
| Connection Method | - Threaded Connection (standard BSP/NPT threads, e.g., 1/2"BSP, 3/4"NPT) | Directly connect to hoses without adapters; the quick - release design supports nozzle replacement within 5 seconds. |
| - Compatible with quick - release connectors for fire hoses (some models) | ||
| Manual Adjustment Mechanism | - Flow Regulation: Handwheel knob (with scale marking, 5 flow levels selectable) | No power supply required, suitable for power - off scenarios; clear scales allow blind operation in dark environments. |
| (Flow Regulation) | - Mode Switching: Rotating adjustment ring (locking design to prevent misoperation) | |
| Angle Adjustment | - Horizontal Rotation: ±90° (manually swing the nozzle body, with limit pins) | Full coverage of the fire scene without moving the nozzle body. |
| - Vertical Elevation: -20°~+50° (suitable for high shelves/low ground fires) | ||
| Manual Adjustment Mechanism | - Flow Regulation: Handwheel knob (with scale marking, 5 flow levels selectable) | No power supply required, suitable for power - off scenarios; clear scales allow blind operation in dark environments. |
| (Flow Regulation) | - Mode Switching: Rotating adjustment ring (locking design to prevent misoperation) | |
| Angle Adjustment | - Horizontal Rotation: ±90° (manually swing the nozzle body, with limit pins) | Full coverage of the fire scene without moving the nozzle body. |
| - Vertical Elevation: -20°~+50° (suitable for high shelves/low ground fires) | ||
| Operating Temperature Range | - Standard Type: -20℃~+80℃ (NBR seal) | High - temp types are suitable for boiler rooms and drying workshops; low - temp types suit northern winter outdoor and cold storage scenarios. |
| - High - temp Type: -40℃~+150℃ (FKM seal) | ||
| Notes | Specific details need to be confirmed with the supplier. | Specific details need to be confirmed with the supplier. |
———
