Water/foam Dual-purpose Fire Monitor

The Water/foam Dual-purpose Fire Monitor is a heavy-duty firefighting device, built with durable ductile iron for long-term outdoor or harsh-environment use. Designed for fixed installation, it relies on manual operation to adjust direction, delivering high-pressure water streams to tackle large or distant fires efficiently.

● Body Material:
- Standard model: Environmentally friendly brass (C36000, RoHS compliant)
- Corrosion-resistant model: Stainless steel / Nickel-plated brass
● Rated Flow Rate (L/s):
- Water mode: 20–50 L/s (72–180 GPM)
- Foam mode: 15–40 L/s (54–144 GPM)
● Working Pressure Range (MPa):
- 0.6–1.6 MPa (6–16 bar)
- Max. pressure resistance: 2.5 MPa (25 bar, burst pressure)
● Water Jet Range (m):
- 15–25 m (at 1.0 MPa, straight jet mode)
- Range increases by 30% in high-pressure mode (e.g., 28 m at 1.6 MPa)
● Foam Jet Range (m):- 10–20 m (at 0.8 MPa, low-expansion foam mode)
● Expansion Ratio (20℃):- 6–10 times (low-expansion foam, compliant with EN 1568)
● 25% Drainage Time (min):- ≥3 min (stability index for low-expansion foam)
● Foam Mixing Ratio:- 3% or 6% (adjustable, suitable for aqueous film-forming foam (AFFF) or protein foam (FP))
● OEM Service：Accepted
● Delivery Terms：FOB, CFR, CIF, EXW
● Payment Mode：T/T, L/C, PayPal, Western Union

Product category:

Fixed fire monitor

Enterprise Atlas:

Email:

linhaifeng117@gmail.com

Inquiry Now

Product Details

———

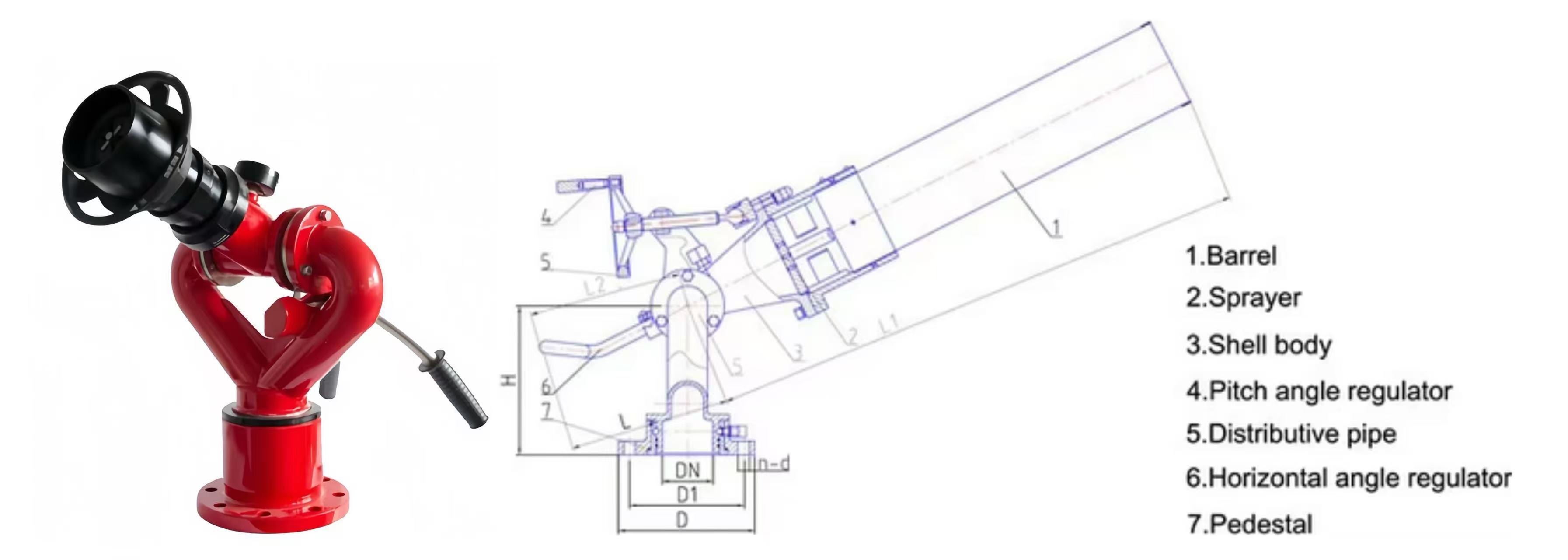

Product Formation

* Water/foam Dual-purpose Fire Monitor is a new type of multi-functional fire extinguishing equipment with high pressure and high strength material combination. It can be equipped on various fire trucks, fire boats, fixed fire turrets and fire pipes.
* The gun nozzle adopts the principle of diversion flow, namely large flow, concentrated water flow and long range flow. With many functions, it can be used for straight stream and spray. The flow rate can be adjusted within the range of 20-60L/S according to requirements. The operation is flexible and convenient, the gun body can be horizontally rotated, and the pitch can be turned upside down.
* The function of positioning and locking can be realized, which is convenient for the operator to evacuate the site and implement unmanned operation.

KEY WORDS： Water-foam dual medium、Dual-purpose fire suppression , High-pressure jet、Adjustable flow, Fire monitor body、Dual-medium nozzle, China, manufacturers, suppliers, wholesale, factory.

Other Classifed Products：

Fire Hose Categories, Fire Sprinkler System, Fire Protection Valve , Fire Hose Reel&Cabinet , Fire Foam Equipment，Fire Nozzle and Fire Monitor , Fire Hydrant , UL/FM Fire Fighting Equipment , Brass Valve Categories , Fire Extinguisher Series

———

Product Features

Simple operation, flexible control, long jet range：Adopts user-friendly design for quick mastery in emergencies; flexible structure and high-pressure system enable long-range coverage of fire sites, keeping operators away from danger.​
Equipped with flow adjustment function：Integrates precise components to adjust water/foam flow based on fire size, matching different fire suppression needs efficiently.​
Supports horizontal rotation and pitch rotation：Enables 360° horizontal rotation and wide-angle pitch adjustment for flexible jet direction, quickly locking fire points without angle limits.​
With straight stream and spray function：Offers two modes: straight stream for long-distance fire suppression, and spray for covering.


———

Product Parameters

Model：	PL8/24	PL8/32	PL8/40	PL8/48	PL10/64
Rated flow (L/s）：	24	32	40	48	64
Rated working pressure (MPa)：	0.8	0.8	0.8	0.8	0.8
Working pressure range (MPa)：	0.8 - 1.2	0.8 - 1.2	0.8 - 1.2	0.8 - 1.2	1.0 - 1.4
Low-expansion foam Jet (m)：	≥42	≥48	≥55	≥60	≥70
Water Jet(m):	≥55	≥60	≥65	≥70	≥75
Connecting Flange：	DN80	DN80	DN80	DN100	DN100
Horizontal rotation angle (°)：	360
Vertical rotation angle (°)：	-60～+90
Foaming ratio (at 20℃)：	≥6
25% elution time (min)：	≥2.5
Foam mix ratio：	6～7
Installation method：	Seat
Operation method：	Manual
Use environment：	-10℃ - +50℃，≤95%RH

Parameter Category	Typical Value/Range	Description
Body Material	- Standard model: Environmentally friendly brass (C36000, RoHS compliant)	-
Body Material	- Corrosion-resistant model: Stainless steel / Nickel-plated brass	-
Rated Flow Rate (L/s)	- Water mode: 20–50 L/s (72–180 GPM)	Flow rate is adjustable to suit different fire scene areas (e.g., 20 L/s covers 50 ㎡, 50 L/s covers 150 ㎡).
Rated Flow Rate (L/s)	- Foam mode: 15–40 L/s (54–144 GPM)
Working Pressure Range (MPa)	- 0.6–1.6 MPa (6–16 bar)	Suitable for fire pumps (0.8–1.2 MPa) and foam proportioning mixing devices (0.6–1.0 MPa).
Working Pressure Range (MPa)	Max. pressure resistance: 2.5 MPa (25 bar, burst pressure)
Water Jet Range (m)	- 15–25 m (at 1.0 MPa, straight jet mode)	-
Water Jet Range (m)	Range increases by 30% in high-pressure mode (e.g., 28 m at 1.6 MPa)	-
Foam Jet Range (m)	- 10–20 m (at 0.8 MPa, low-expansion foam mode)	Foam range is affected by expansion ratio (higher ratio slightly reduces range but provides denser coverage).
Expansion Ratio (20℃)	- 6–10 times (low-expansion foam, compliant with EN 1568)	Higher expansion ratio means denser foam and stronger heat/oxygen insulation (6 times is the basic fire-extinguishing requirement).
25% Drainage Time (min)	- ≥3 min (stability index for low-expansion foam)	Longer drainage time means better foam persistence (≥3 min meets EN 1568 standard).
Foam Mixing Ratio	- 3% or 6% (adjustable, suitable for aqueous film-forming foam (AFFF) or protein foam (FP))	3% mixing ratio saves foam liquid; 6% has stronger foam stability and is suitable for oil fires.
Applicable Fire Types	- Class A fires (solid substances, e.g., wood, paper): Straight jet in water mode penetrates deep-seated fire sources.	Dual-mode covers over 90% of industrial/commercial fire types, reducing equipment redundancy.
	- Class B fires (liquids/gases, e.g., oil, gas): Foam mode covers and isolates oxygen.
	- Class C fires (gas fires): Water mode cools down + foam mode suppresses steam explosions.
Ambient Temperature Range	- Standard model: -20℃~+80℃ (nitrile rubber seal)	High-temp model: Suitable for boiler rooms, steel mills.
Ambient Temperature Range	- High-temp model: -40℃~+150℃ (fluoro rubber seal)	Low-temp model: Suitable for outdoor/winter cold storage scenarios in northern regions.
Notes	Specific details need to be confirmed with the supplier.

———
