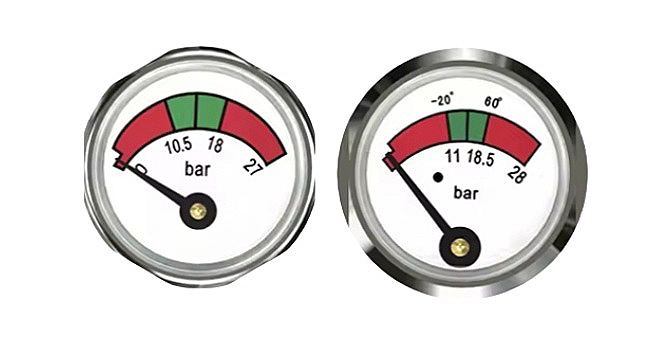

Diaphragm Pressure Gauge For Fire Extinguisher

• Product Origin:China
• Payment:L/C, T/T
• Material:Brass/Plastic
• Test Pressure:0-28Bar
• Diameter:23mm
• Type: Portable
• Working Temperature:-20~+60
• Gauge Thread: M10X1-12.5 Or M8X1 Or M10X1 Or NPT 1/8
•OEM Service：Accepted
•Delivery Terms：FOB, CFR, CIF, EXW
•Payment Mode：T/T, L/C, PayPal, Western Union

Product category:

other fire Extinguisher

Email:

linhaifeng117@gmail.com

Inquiry Now

Product Details

———

Product Formation

Fire diaphragm pressure gauges are made via a standard process focusing on precision and fire safety. The core diaphragm uses corrosion-resistant, high-elasticity materials (316L stainless steel or fluororubber) to withstand water, air, or dry powder residues. The case (forged brass/aluminum alloy) is precision-cast and anti-rust treated (chrome plating/painting) for durability in humid environments.

Key parts are precision-processed: the diaphragm is stamped and heat-treated for uniform elasticity; internal gears/linkages are CNC-machined to reduce error. Threaded interfaces (NPT1/8, M10×1) match fire equipment standards for tight connection.

Each gauge passes tests: pressure calibration (±1.6% error), diaphragm durability (10,000+ pressure cycles), and environmental adaptability (-20℃ to 70℃, 95% humidity). Qualified gauges get clear scales (psi/bar) and shock-proof packaging.

———

Product Features

Fire System Specialization: Accurately measures pressure in sprinkler systems, hydrants, and ABC dry powder fire extinguishers; corrosion-resistant diaphragm ensures long-term reliability.
High Precision & Readability: ±1.6% accuracy; high-contrast, large-scale dial for easy reading even in low light.
Durability & Adaptability: Anti-rust, impact-resistant case; stable in -20℃ to 70℃ and 95% humidity.
Standard Interface Compatibility: Universal threads (NPT1/8, M10×1, BSP1/4) fit global fire equipment, no extra adapters needed.
Low Maintenance: Sealed diaphragm prevents dust/medium entry; only regular dial wiping required.
Compliance with Standards: Meets CE, UL, GB/T 1226; third-party tested for fire emergency use.

———

Product Parameter

Nominal size:	23mm
Scale ranges:	0-28bar
Pressure connection:	M10X1-12.5 or M8X1 or M10X1 or NPT 1/8"
Wetted parts:	Copper diaphragm
Case material:	Forged brass, chrome plated
Thread Specification :	npt1/8, M10X1 is available
applicable to:	Supply dry powder fire extinguisher 23 diaphragm pressure gauge

———

FAQ

Q: Can you accept sample order?

A: Yes, we accept samples with little and reasonable charge.But need customer pay sample fees and transport fees first.

Q: What is your payment terms?
A: Payment supports T/T, L/C, etc.

Q: How can l get my order?
A: We will send you the goods by UPS,DHL,FedEx,Oversea Shipment or other forwarder, all with tracking number.

Q: Why choose us?
A; With over 10 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!

——

We serve customers for over 10 years — so we’ve got the knowledge and industry experience to help you get it right.Professional technical support, intimate service experience We have a professional technical support team, at any time to provide you with product consultation, installation guidance and after-sales service.

Let the professionals at Sheng Feng Fire help you select the products that meet your exact needs.

Welcome to inquiry us！
