Brass 3 Position Fog Nozzle
• Material:Brass
• Inlet:1.5” / 2” / 2.5”
• Outlet:：DN40 / DN50 / DN65
• Working pressure:16bar
• Test pressure:Body test at 24bar
• FOB port:：Xiamen/Guangzhou/Ningbo / Shanghai
• Packing Size:36*36*15cm
• Units per Export Carton:10pcs
• Net Weight:：22kgs
• Gross Weight:：22.5kgs
• OEM Service：Accepted
• Delivery Terms：FOB, CFR, CIF, EXW
• Payment Mode：T/T, L/C, PayPal, Western Union
Product category:
Enterprise Atlas:
Product Details
———

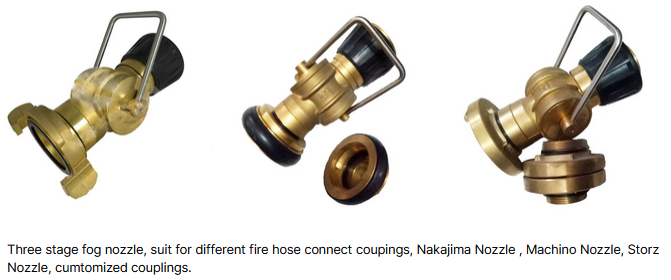

Product Formation
3 position nozzle is manual type nozzle. This nozzles are available with aluminum or brass and are manufactured to comply to marine standard with delivery hose connection complying with marine standard. The nozzles are classified under low pressure and are suitable for use at nominal inlet pressure up to 16 bars. The internal casting finishes of every nozzle is of high qualityensuring a low flow restriction that meets the standard’s water flow test requirement.3 position nozzle are suitable for both on-shore and off-shore fire protection applications and suitable for hose C/W coupling for firefighting. These nozzles put in the cabinet with hose or hose reel.When using will suitable with hose and spray out the fire.
Other Classifed Products：
Fire Hose Categories, Fire Sprinkler System, Fire Protection Valve , Fire Hose Reel&Cabinet , Fire Foam Equipment，Fire Nozzle and Fire Monitor , Fire Hydrant , UL/FM Fire Fighting Equipment , Brass Valve Categories , Fire Extinguisher Series
———
Product Features
1、Durable Material：
Crafted from brass, the nozzle is well-suited for long-term use in outdoor or humid environments (e.g., outdoor fire hydrants, fire truck configurations). Its brass construction ensures excellent resistance to corrosion and wear, contributing to an extended service life.
2、Flexible Functionality：
Featuring a 3-position design, the nozzle can handle various fire types:
- The jet mode (solid stream) is ideal for suppressing concentrated solid fires;
- The fog modes (wide/narrow) are suitable for extinguishing diffusive fires (e.g., electrical fires, oil-based fires).
———
Product Parameter
| Item | Details |
| Main Material | - Standard model: Environmentally friendly brass (lead content ≤0.25%, compliant with RoHS) |
| - Corrosion - resistant model: Nickel - plated brass (surface nickel plating thickness ≥10μm) | |
| Environmentally friendly brass is suitable for indoor fire fighting; the nickel - plated model is corrosion - resistant (salt spray/chemical media) and suitable for chemical and marine scenarios. | |
| Connection Method | Threaded connection (standard BSP/NPT threads, e.g., 1/2″BSP, 3/4″NPT) |
| Compatible with fire hose buckles/quick - connect fittings (some models) | |
| Working Pressure Range | 0.6–1.6MPa (6–16bar) |
| Suitable for fire pumps (0.8–1.2MPa) and industrial high - pressure cleaners (1.0–2.0MPa), with stable atomization under high pressure | |
| Maximum pressure resistance: 2.5MPa (25bar, burst pressure) | |
| Flow Rate Range (Three - gear Adjustment) | Low gear (fine mist): 50–150L/min (13–40GPM) |
| Medium gear (medium mist): 150–250L/min (40–66GPM) | |
| High gear (coarse mist): 250–350L/min (66–92GPM) | |
| Rotate the adjustment ring to switch gears (Gear 1→2→3: fine mist→medium mist→coarse mist), gear locking design to prevent misoperation | |
| Spray Mode | Three - gear mist type switching: |
| 1. Fine mist (50–100μm): Wide coverage (15–20㎡/min), high cooling efficiency (△T≥50℃); | |
| 2. Medium mist (100–150μm): Balance between coverage and spray range (10–15m); | |
| 3. Coarse mist (150–200μm): Strong penetration (spray range 15–25m), suitable for cooling deep - seated fire sources | |
| Tool - free, single - hand rotation adjustment, suitable for Class A (solid fire) coverage and Class B (liquid fire) oxygen isolation | |
| Spray Range (Under Typical Pressure) | Fine mist (0.8MPa): 12–18m |
| Medium mist (1.0MPa): 15–22m | |
| Coarse mist (1.2MPa): 18–25m | |
| Suitable Fire Types | Class A fire (solid substances, such as wood, paper, textiles); medium/coarse mist covers the surface of stacks for cooling and preventing re - ignition; |
| Class B fire (liquids/gases, such as oil products, gas): Coarse mist penetrates and extinguishes fire, isolating steam; | |
| Industrial cleaning: High - pressure fine mist rinses oil and dust on equipment surfaces | |
| Three - gear mist types suit different fire/cleaning needs, e.g., fine mist for cooling precision equipment, coarse mist for large - area oil cleaning | |
| Ambient Temperature Range | - Standard model: -20℃~+80℃ (nitrile rubber seal) |
| - High - temperature model: -40℃~+150℃ (fluororubber seal) | |
| Inlet: | 1.5” / 2” / 2.5” |
| Outlet: | DN40 / DN50 / DN65 |
| Working pressure: | 16bar |
| Test pressure: | Body test at 24bar |
| FOB port: | Xiamen/Guangzhou/Ningbo / Shanghai |
| Packing Size: | 36*36*15cm |
| Units per Export Carton: | 10pcs |
| Net Weight: | 22kgs |
| Gross Weight: | 22.5kgs |
| Notes | Specific details need to be confirmed with the supplier. |
———
FAQ
Q. What is the MOQ for Brass 3 Position Fog Nozzle?
A:The minimum order quantity is 100 units for standard sizes. Production lead time is 15 - 20 working days for standard products. Customized requirements (e.g., special sizes, materials) may adjust MOQ and delivery timelines.
Q. Can you accept sample order?
A:Yes, we accept samples with little and reasonablecharge.But need customer pay sample fees and transportfees firest.
Q. What are the available delivery terms?
A:We offer EXW, FOB, CIF, and DAP delivery terms. Our logistics team will help you choose the most suitable shipping solution based on your location and requirements.
——
With more than 15 years of experience serving clients, we have developed extensive expertise and in-depth industry knowledge, enabling us to deliver reliable and effective solutions tailored to your requirements.
We provide professional technical support and customized service offerings. Our committed technical team is available to assist you with product consultation, installation guidance, and comprehensive after-sales support whenever necessary.
At Sheng Feng Fire, our professionals are dedicated to helping you select the most suitable products based on your specific needs.
Please do not hesitate to contact us for further information！
