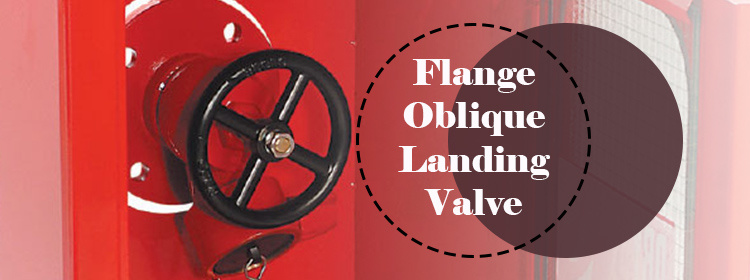

2.5 Inch Flange Inlet Oblique Fire Hydrant Landing Valve

The core objective of the 2.5 Inch Flange Inlet Oblique Fire Hydrant Landing Valve is to rapidly and reliably supply fire-fighting water during emergencies. Its "flange inlet" addresses high-pressure sealing and standardization challenges, the "oblique design" optimizes water flow efficiency and operational ease, and the "landing valve body" adapts to outdoor environments and safety requirements—ultimately establishing itself as the "efficient, reliable, and easy-to-maintain" terminal control core in modern fire protection systems.

● Product Origin:China
● Lead Time:15-20days
● Size:2 Inch, 2.5 Inch
● Material:Brass
● Working Pressure:1.6 Mpa
● Type:Flange Inlet Oblique
●OEM Service：Accepted
●Delivery Terms：FOB, CFR, CIF, EXW
●Payment Mode：T/T, L/C, PayPal, Western Union

Product category:

Fire Hydrant

Enterprise Atlas:

Email:

linhaifeng117@gmail.com

Inquiry Now

Product Details

———

Product Formation

Oblique landing valves are suitable for installation on wet risers in a building for fire fighting purposes with permanently charged water from a pressurised supply.

The landing valves are oblique type with flanged inlet and are manufactured to comply to BS 5041 Part 1 standard with delivery hose connection and blank cap complying with BS 336:2010 standard.

The landing valves are classified under low pressure and are suitable for use at nominal inlet pressure up to 15 bar.

KEY WORDS： 2.5 Inch, Flange Inlet, Oblique Design, Fire Hydrant Landing Valve, Terminal Control Valve, Fire Protection System Component , China, manufacturers, suppliers, wholesale, factory.

Other Classifed Products：

Fire Hose Categories, Fire Sprinkler System, Fire Protection Valve , Fire Hose Reel&Cabinet , Fire Foam Equipment，Fire Nozzle and Fire Monitor , Fire Hydrant , UL/FM Fire Fighting Equipment , Brass Valve Categories , Fire Extinguisher Series

———

Product Features

Body material made of copper alloy to EN 1982
Hand wheel material made of grey cast iron to BS EN 1561
Blank cap material made of copper alloy to EN 1982
Possible to replace the gland seal when under pressure with the valve fully closed
Disc facing rubber is of replaceable type
Valves are provided with a strap and pad lock so that the hand wheel can be secured to counter unauthorized use
The hand wheel is BLACK painted and body to RED

———

Product Parameter

Type	Landing Valve
Inlet Connection	Flange Inlet
Body Material	Ductile Iron or Cast Steel
Working Pressure	1.0~1.6 MPa（10~16 bar）
Test Pressure	Strength Test: 2.4 MPa (no deformation for 1 minute); Seal Test: 1.8 MPa (no visible leakage)
Burst Pressure	≥4.0 MPa
Nominal Size (DN)	DN65（2.5")
Inlet	2.5”BS4504
Outlet	2.5”BS 336 Female coupling with plastic cap & chain

———
