PVC Fire Hose

Unlike traditional rubber hoses, PVC fire hoses are made of synthetic materials and are usually reinforced with materials such as polyester fibers on the outside, making them lighter while maintaining their strength.It can be used not only in professional fire brigades but also in fire protection systems of industrial facilities, commercial buildings and residences, etc.

• Material:Polyvinyl Chloride Resin（PVC）
• Nominal Pressure:8–25 bar（120–365 psi）
• Payment:T/T,L/C,Western Union,Paypal
• Application:Firefighting,Industry,Agriculture,Forest,Marine,Building
•Size:1.5" - 4"
• Meter：10m~30m
• Pressure：0.8Mpa~1.6Mpa
• Type：PVC Fire Hose • Delivery Time：15~45 Days
• MOQ：300 Rolls

Product category:

PVC lining fire hose

Enterprise Atlas:

Email:

linhaifeng117@gmail.com

Inquiry Now

Product Details

PVC Single Jacket Fire Hose Product Description

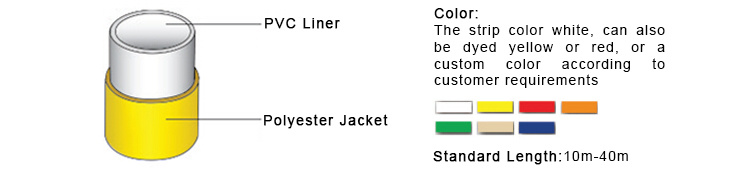

The PVC fire hose features a composite structural design that enhances both performance and durability.

Inner Lining Layer: Crafted from PVC material, this layer creates a smooth internal surface that minimizes water flow resistance and boosts delivery efficiency. It is specifically designed for waterproof sealing and exhibits excellent corrosion resistance.

Reinforcing Layer: Composed of high-strength synthetic fibers, such as polyester or nylon, this layer encases the inner lining, imparting mechanical strength and pressure resistance. Hoses featuring a double-sheath design incorporate two braided layers within this section, further augmenting their durability.

Outer Protection: Certain PVC fire hoses come with a specialized coating on the outer layer, offering enhanced wear resistance and protection against UV rays.

PVC fire hoses operate on their flexible pipe design. When connected to a fire pump, water flows through the hose. The smooth PVC lining reduces friction loss, maximizing water flow. The reinforcing layer supports internal pressure, preventing expansion or bursting, and ensures effective water delivery to the fire scene.

PVC Line Fire Hose Features

PVC Fire Hoses’ performance advantages mainly come from PVC materials’ chemical properties and structural design, including:

Lightweight & Flexible

PVC hoses are considerably lighter than conventional rubber hoses, allowing firefighters to deploy them swiftly and maneuver with greater ease in confined spaces. This advantage can greatly alleviate the physical strain on firefighters during extended firefighting operations.

Durability and resistance

PVC material boasts remarkable corrosion resistance, allowing it to endure the damaging effects of water, a wide range of chemicals, and ultraviolet rays. This exceptional durability ensures that the hose maintains consistent performance and prolongs its lifespan across diverse environmental conditions.

Low maintenance requirements

Once used, PVC hoses can be effortlessly cleaned and stored, eliminating the need for intricate maintenance routines. Additionally, their anti-mold characteristics significantly diminish the prevalent mold issues associated with traditional natural fiber hoses.

Cost-Effective

The production cost of PVC fire hoses is relatively low, making it an economical and practical choice. This is particularly beneficial for organizations with limited budgets that still need to be equipped with a large number of fire-fighting devices.

Multi-functional applicability

PVC hoses are versatile and can be utilized in a variety of fire extinguishing applications, encompassing both standard water-based systems and foam fire suppression systems, showcasing their broad compatibility.

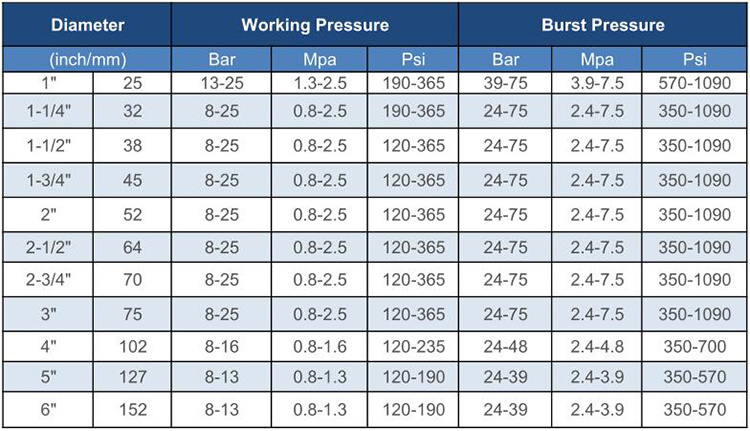

Fire Hose Product Parameter

Size		Working Pressure			Burst Pressure
（inch/mm）		Bar	Mpa	Psi	Bar	Mpa	Psi
1"	25	13-25	1.3-2.5	190-365	39-75	3.9-7.5	570-1090
1-1/2"	38	8-16	0.8-1.6	120-235	24-48	2.4-4.8	350-700
1-3/4"	45	8-16	0.8-1.6	120-235	24-48	2.4-4.8	350-700
2"	52	8-16	0.8-1.6	120-235	24-48	2.4-4.8	350-700
2-1/2"	64	8-16	0.8-1.6	120-235	24-48	2.4-4.8	350-700
2-3/4"	70	8-16	0.8-1.6	120-235	24-48	2.4-4.8	350-700
3"	75	8-16	0.8-1.6	120-235	24-48	2.4-4.8	350-700
4"	102	8-16	0.8-1.6	120-235	24-48	2.4-4.8	350-700
5"	127	8-13	0.8-1.3	120-190	24-39	2.4-3.9	350-750
6"	152	8-13	0.8-1.3	120-190	24-39	2.4-3.9	350-750

Material :	Polyvinyl Chloride Resin（PVC）
Size :	1.5" - 4"
Nominal Pressure :	8–25 bar（120–365 psi）
Channel Design :	Full Port Straight Through Type
Working Media :	Water、Foam Concentrate
Operating Temp :	-20°C to +80°C
MOQ :	50 units for standard sizes

KEY WORDS：PVC Fire Hose, Flexible PVC Fire Hose，20m 30m PVC Fire Hose，High Pressure PVC Fire Hose,1.5 Inch Fire Hose，2 Inch Fire Hose， China, manufacturers, suppliers, wholesale, factory

FAQ

Q: Can you accept sample order?

A: Yes, we accept samples with little and reasonable charge.But need customer pay sample fees and transport fees firest.

Q: What is your payment terms?
A: Payment supports T/T, L/C, etc.

Q: How can l get my order?
A: We will send you the goods by UPS,DHL,Fedex,Oversea Shipment or other forwarder, all with tracking number.

Q: Why choose us?
A; With over 15 years of experience in the fire protection industry, our company has professional technical person! and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!

——

With more than 15 years of experience serving clients, we have developed extensive expertise and in-depth industry knowledge, enabling us to deliver reliable and effective solutions tailored to your requirements.
We provide professional technical support and customized service offerings. Our committed technical team is available to assist you with product consultation, installation guidance, and comprehensive after-sales support whenever necessary.
At Sheng Feng Fire, our professionals are dedicated to helping you select the most suitable products based on your specific needs.
Please do not hesitate to contact us for further information！
